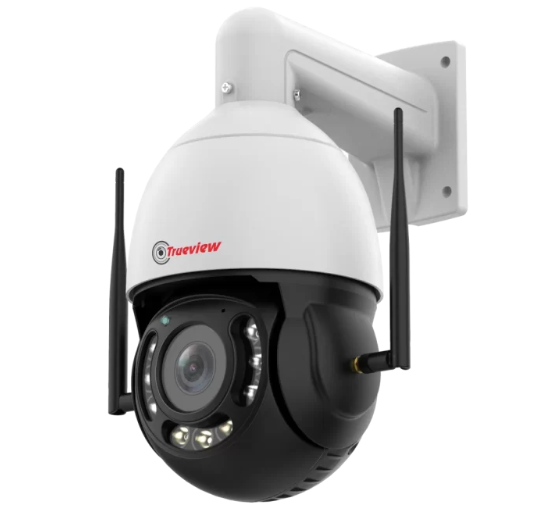

3MP 4G Dome PTZ Camera
New
• IP PTZ 3 Megapixel
• Support 4G SIM
• Infrared and spotlight adjustable to achive full color at night
• Support 256GB SD card
• Support Two-way audio
• Support P2P remote monitoring With TrueCloud Application
• Built-in High Sensitivity Speaker and Mic
• ONVIF – Compatible with all NVR
• 36X Zoom
Product Code: T18106
Chipset: GK7205 + SC3335
Image Sensor: 1/2.7" 3.0MP CMOS SC3335
Resolution: 3MP (2304 x 1296)
Video Compression: H.264 / H.265
Lens: F = 5.3-96MM
Aperture: F1.6
Zoom: 36X Zoom
Video Streaming:
- Main Stream: 2304 x 1296 @ 15fps
- Sub Stream: 640 x 360 @ 15fps
IR LED: 2 pcs IR array LED + 4 pcs laser array LED
White LED: 3 pcs white light
IR LED Distance: 130 Meters
White LED Distance: 30 Meters
Minimum Illumination: - Color: 0.001 Lux @ (F1.6, AGC ON)
- B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
WDR: DWDR
Day & Night: Auto or Manual; Color / BW / AGC
Noise Reduction: 3DNR
S/N Ratio: ≥50dB
Movement Range (Pan): 0° ~ 360°
Movement Range (Tilt): 0° - 90°, Auto Flip
Pan Speed: Configurable from 0.01° ~ 60°/s
Tilt Speed: Configurable from 0.01° ~ 30°/s
Preset Points: 64 Preset Positions, Precision of Preset Point < ±0.1°
Cruise Scan: 3 Sets of Pre-positioned Cruise Routes
Pattern Scan: 3 Pattern Scans
Tracking Function: Humanoid Tracking and Synchronized Zoom
Communication Protocol: PELCO-D/-P Adaptive
Baud Rate: 57600
Smart Alarm: Humanoid Detection & Motion Detection
Support Protocol: DHCP, DNS, NTP, TCP/IP, HTTP
Communication Interface: RJ45 10-100M, 4G Network
Wireless Standard: 4G LTE-FDD
Frequency Band: LTE-FDD: B1 / B3 / B8, LTE-TDD: B40
Power: DC 12V -- 3A
Operating Temperature & Humidity: 10°C ~ 60°C, less than 90% RH
Power Consumption: Min. 3W (Light off) & Max. 24W (Light on)
Protection Grade: IP66
Weight (Net): 2.740 kg
Weight (Gross): 3.720 kg
