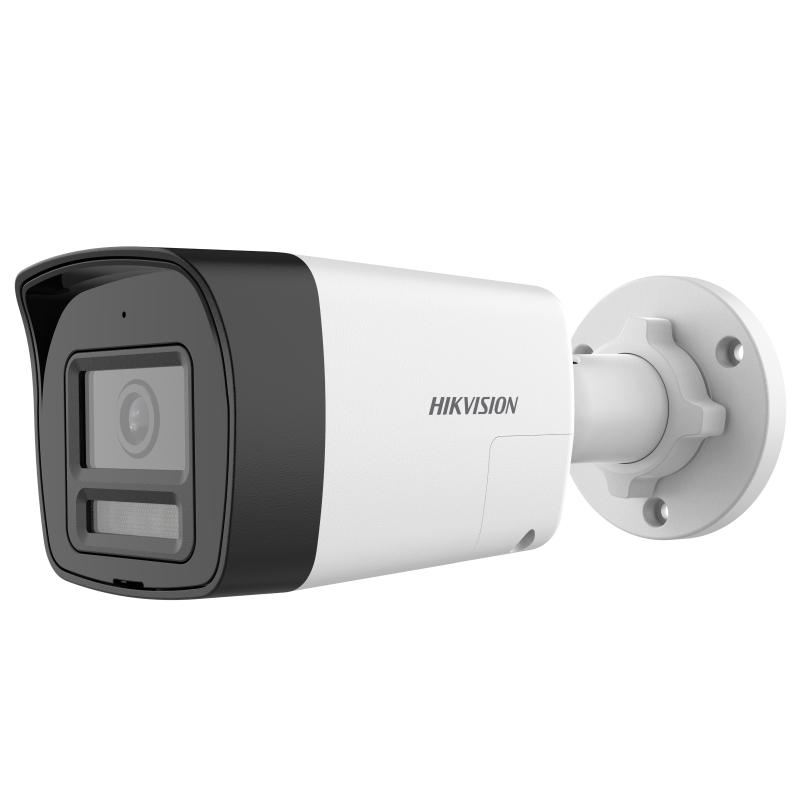

DS-2CE16D0T-LPTS 2MP Smart Hybrid Two-way Audio Camera
New
DS-2CE16D0T-LPTS
2MP Two Way Audio Fixed Mini Bullet Camera
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 2.8 mm, 3.6 mm fixed focal lens
- Up to 25 m IR distance for bright night imaging
- Up to 20 m white light distance for bright night imaging
- Smart-Hybrid Light, optimize your security with flexible lighting options
- High quality audio with audio over coaxial cable, built-in mic, and built-in speaker
- Provide real-time communication via built-in two-way audio
- Water and dust resistant (IP67)
<h3><strong>Key Features:</strong></h3><ol><li><strong>2MP High-Quality Imaging:</strong> Delivers full HD resolution (1920 × 1080), providing clear and detailed video footage for reliable monitoring.</li><li><strong>Flexible Lens Options:</strong> Comes with 2.8mm and 3.6mm fixed focal lengths, allowing customization based on the desired field of view.</li><li><strong>Smart-Hybrid Lighting:</strong> Combines IR and white light to provide flexible illumination, ensuring clear visibility even in complete darkness.</li><li><strong>Dual Illumination Distance:</strong> Offers up to 25m IR distance and up to 20m white light distance, ensuring bright night-time imaging.</li><li><strong>Two-Way Audio Communication:</strong> Equipped with a built-in microphone and speaker, enabling real-time communication between users and monitored areas.</li><li><strong>High-Quality Audio:</strong> Supports audio over coaxial cable, ensuring synchronized video and audio capture for enhanced security monitoring.</li><li><strong>Weatherproof Design (IP67):</strong> Provides protection against water and dust, making the camera suitable for both indoor and outdoor installations.</li></ol><h3><strong>Key Benefits:</strong></h3><ol><li><strong>Enhanced Security with Two-Way Audio:</strong> Real-time two-way communication allows users to interact with visitors or intruders, increasing the level of security and control.</li><li><strong>Clear Night-Time Surveillance:</strong> The camera’s smart-hybrid light technology optimizes lighting based on the environment, delivering clear images at night or in low-light conditions.</li><li><strong>Versatile Installation Options:</strong> With IP67-rated protection and flexible focal lengths, the camera can be installed in various locations, both indoors and outdoors, while maintaining reliability in harsh conditions.</li><li><strong>Comprehensive Monitoring Solution:</strong> High-quality imaging and audio capabilities enable the camera to provide complete visual and audio monitoring, making it ideal for entrances, hallways, or outdoor areas.</li><li><strong>Improved Audio Awareness:</strong> The built-in microphone and speaker capture high-quality audio, allowing users to gather additional context in security incidents.</li><li><strong>Cost-Effective and Reliable:</strong> This camera offers essential surveillance features, making it an economical choice for securing small businesses, residential areas, or commercial spaces.</li></ol>
Camera:
- Image Sensor: 2 MP CMOS
- Max. Resolution: 1920 (H) × 1080 (V)
- Min. Illumination: 0.01 Lux @(F1.6, AGC ON), 0 Lux with White Light
- Shutter Time: PAL: 1/12.5 s to 1/50,000 s, NTSC: 1/15 s to 1/50,000 s
- Day & Night Mode: ICR (Infrared Cut Filter Removable)
- Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
- Signal System: PAL/NTSC
Lens:
- Lens Type: 2.8 mm, 3.6 mm fixed lens options
- Focal Length & Field of View (FOV):
- 2.8 mm: Horizontal FOV: 105°, Vertical FOV: 59°, Diagonal FOV: 127°
- 3.6 mm: Horizontal FOV: 87°, Vertical FOV: 46°, Diagonal FOV: 105°
- Lens Mount: M12
Audio:
- Microphone Pickup Distance: Up to 5 m radius
- Speaker:
- Rated Power: 2 W
- Speaker Range: Up to 5 m radius
- Audio Features: Echo Cancellation, AI Noise Reduction, Automatic Gain Control
Illuminator:
- Supplement Light Type: IR and White Light
- Supplement Light Range:
- IR Distance: Up to 25 m
- White Light Distance: Up to 20 m
Image:
- Image Settings: Anti-banding, Brightness, Sharpness, Smart IR
- Frame Rate: TVI: 1080p @25 fps/30 fps
- Wide Dynamic Range (WDR): Digital WDR
- Image Enhancement: DWDR, BLC, HLC, Global, HLS
- Noise Reduction: 2D DNR (Digital Noise Reduction)
- White Balance: Auto, Manual
Interface:
- Video Output: 1 HD analog output
General:
- Power: 12 VDC ± 25%, Max. 5.7 W
- Material: Plastic
- Dimension: 179 mm × 66 mm × 69.1 mm (7.05" × 2.6" × 2.72")
- Weight: Approx. 245 g (0.54 lb.)
- Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensing)
- Communication: HIKVISION-C
- Language: English
- Protection Level: IP67 (water and dust resistant)
