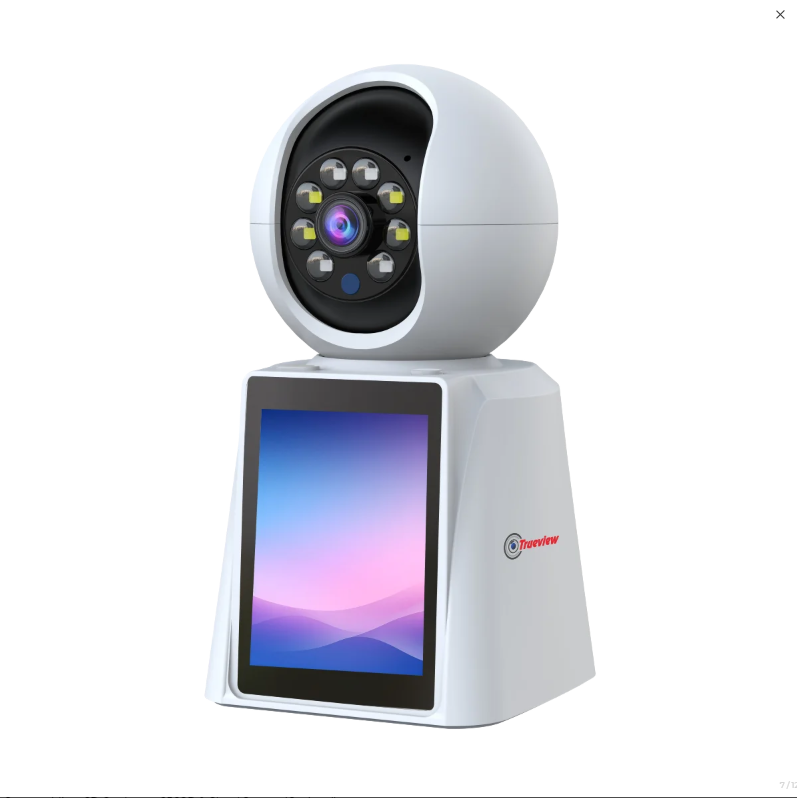

3MP Wi-Fi PT Camera With Built-in Screen
New
• 3MP (2304 x 1296) Resolution
• Full Duplex Audio Intercom (Built-in High Sensitivity Mic & Speaker)
• Supports Bluetooth network configuration function, making network configuration more convenient and successful in three steps

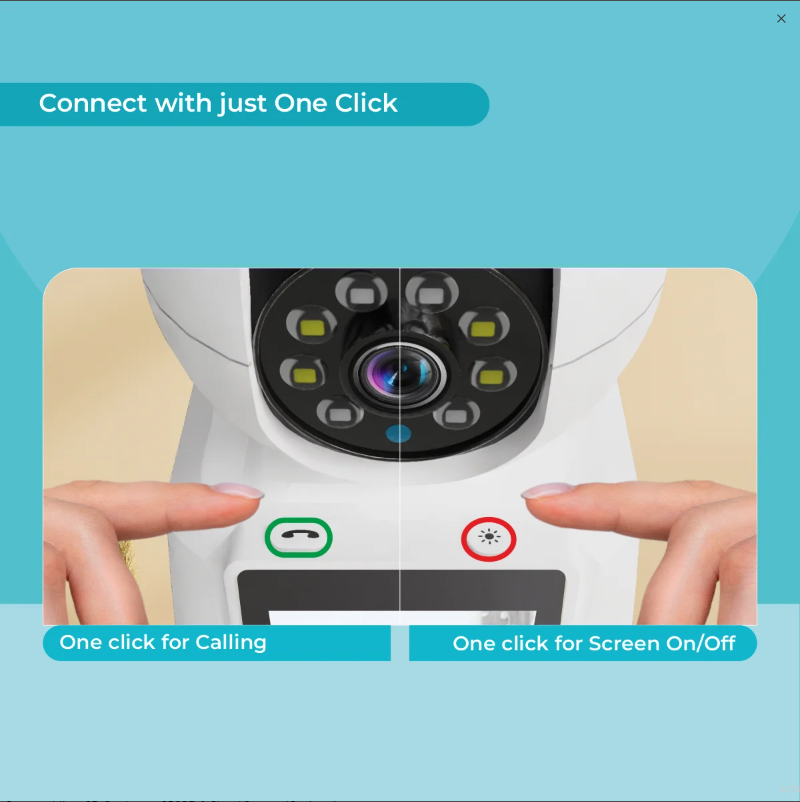

• One-key call, for two-way video & Audio call
• PT Monitoring Pan 345°, tilt 60°
• Support motion tracking and 6 preset position
• Smart Human Detection, Motion Detection
• Mobile Notification on Human & Motion Detection
• Customized Pre-recorded Voice Alarm
• Support Micro SD Card up to 256GB & Cloud Storage(Optional)
• Support Dual Band Wi-Fi Network 2.4G/5.8G
• Smart Dual Light LED for IR; Black & White & White; Full Color vision
• Monitoring : Mobile/PC Software (TrueCloud)
Here are the technical specifications for the T18204-A product:
- Image Sensor: 1/3.2" CMOS Sensor
- Resolution: 3MP (2304 × 1296)
- Lens: 4mm
- IR LED: 4 IR LEDs
- IR Distance: 10 meters
- White LED: 4 White LEDs
- White LED Distance: 10 meters
- Video Compression Standard: H.264/H.265/H.265+
- Video Streaming:
- Main Stream: 2304 x 1296 / 15 fps
- Sub Stream: 800 x 448 / 15 fps
- Audio Input/Output: Two-way audio, built-in microphone and speaker
- Audio Compression Standard: AAC/G711A
- Minimum Illumination:
- Black & White: 0.001 Lux
- Color: 0.001 Lux
- DNR (Digital Noise Reduction): 3D Digital Noise Reduction
- White Balance: Auto
- WDR (Wide Dynamic Range): D-WDR (On/Off)
- Mirror/Flip: Auto
- Electronic Shutter: Auto
- AI Features: Motion Detection, Human Detection, Smart Tracking
- Monitoring: Android, iOS, Windows (via TrueCloud app)
- Storage: Supports MicroSD card (up to 256GB) & Cloud Storage (optional)
- Protocol: N1/ONVIF
- Network Interface: Wi-Fi 6 dual-band (2.4G/5G), IEEE802.11b/g/a/n/ac/ax protocol
- Button: Reset, Call, & Screen Off Button
- Power Input: DC 5V/1A (DC 2.1mm Connector)
- Power Consumption: ≤ 3W
- Thunder Prevention: Standard IEC 61000-4-5
- Working Temperature/Humidity: -10°C to 50°C / 30% to 80% RH
- Storage Temperature/Humidity: -20°C to 60°C / 20% to 90% RH
- Dimensions: (H) 160.8mm x (W) 186.5mm x (D) 85.8mm
- Net Weight: 267g
